A Heated Towel Rail is an affordable luxury for every bathroom. The Thermorail single bar towel heaters are designed to be installed in a set of rails to create a stylish design feature in your bathroom.

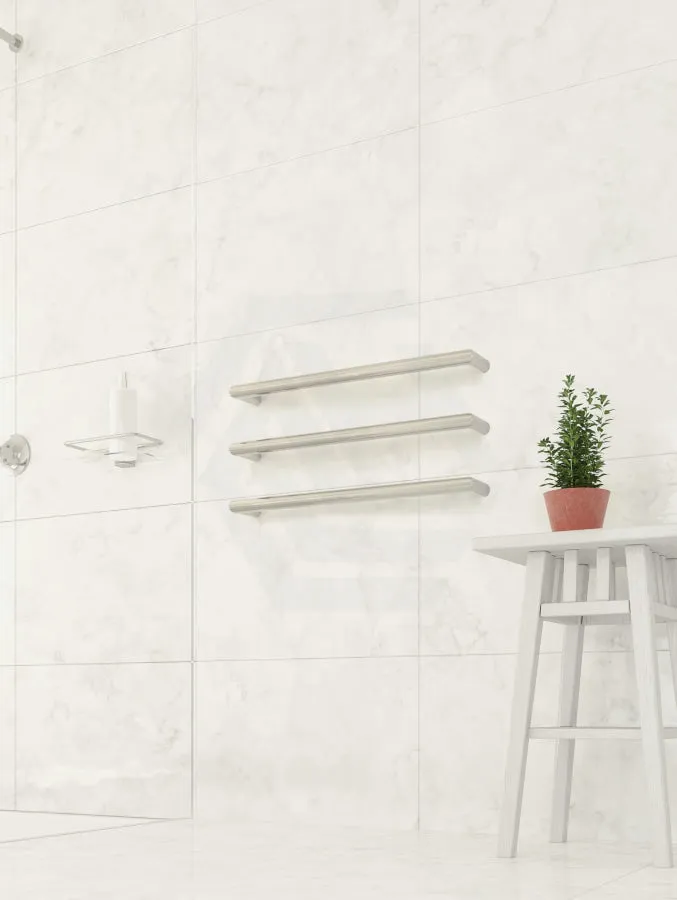

The Thermorail single bar heated towel rails are all 12 volt which means they are safe to be installed anywhere in the bathroom, even close to water. The single rails are designed to be installed in a series of rails limited only by your imagination. We do however recommend a minimum of 3 single rails are used in a set to provide enough heated surface area in contact with your towels to help them to dry.

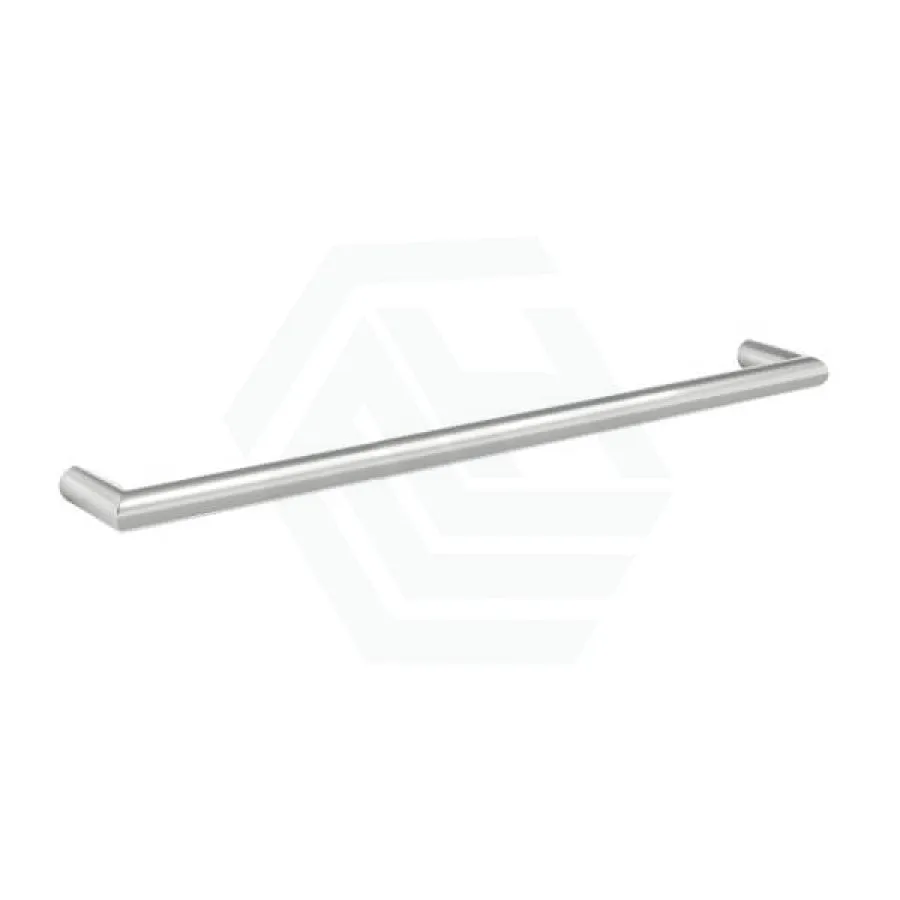

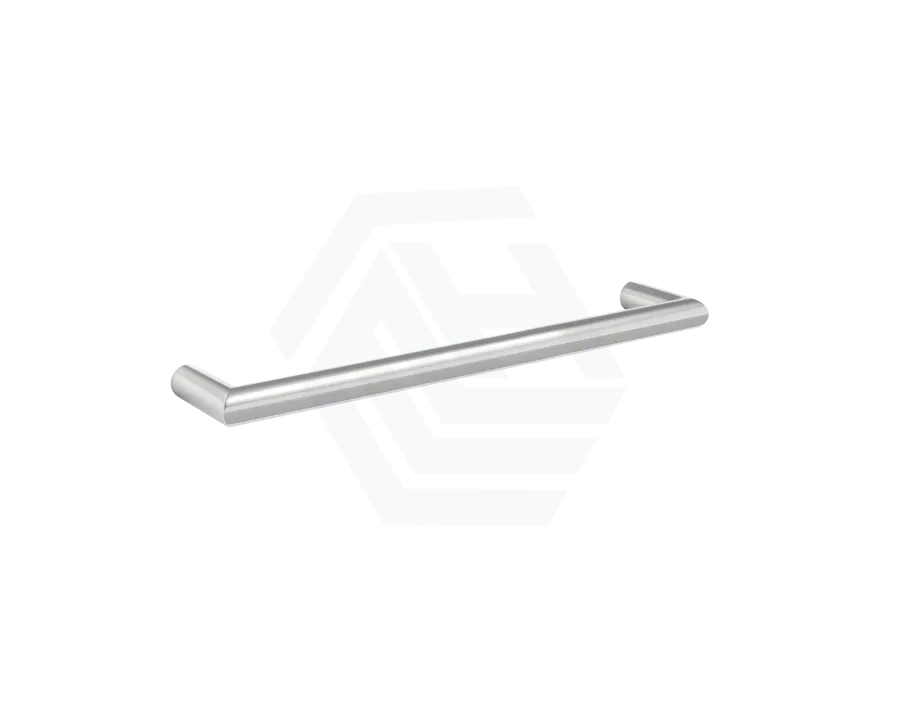

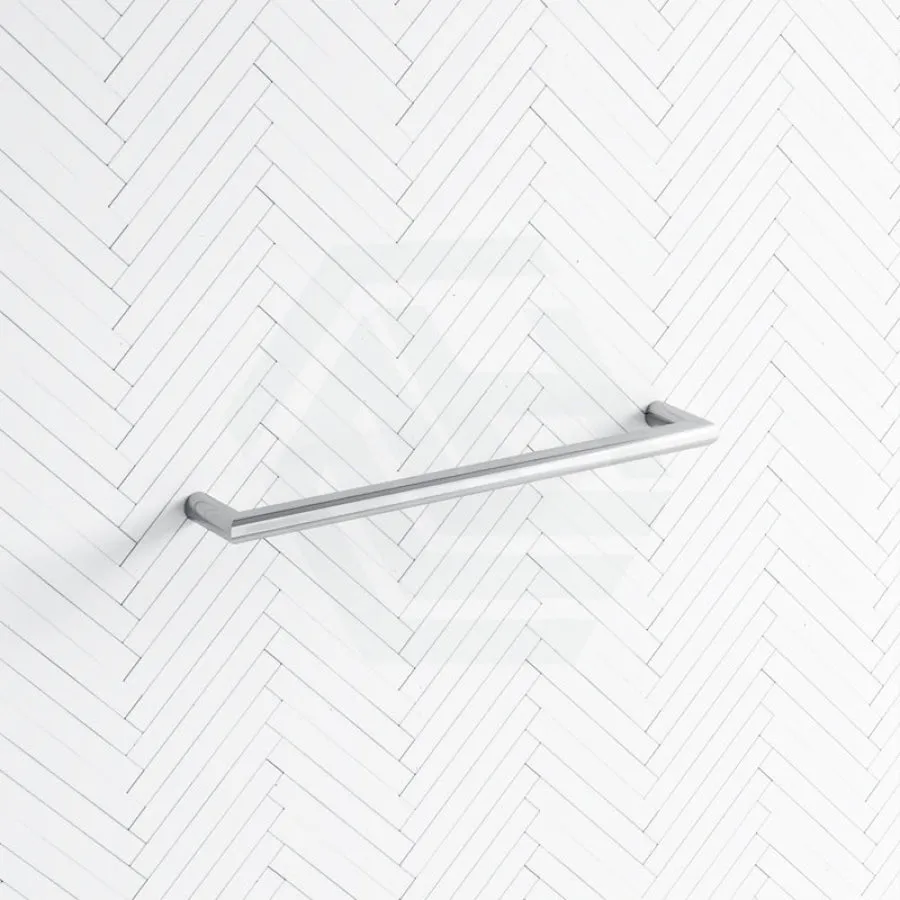

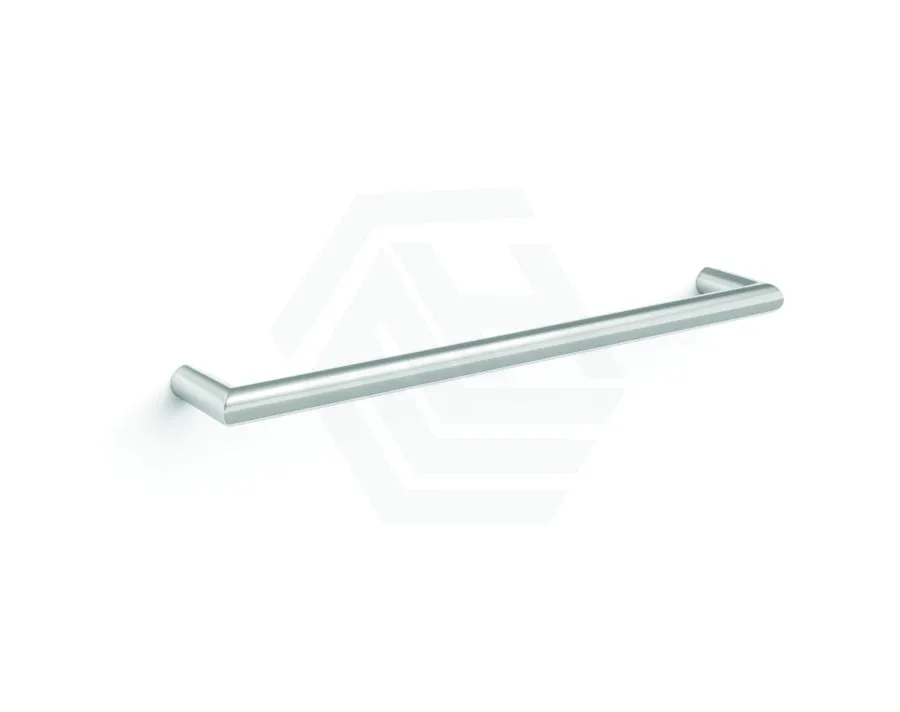

This item is a straight round profile which offers a sleek design in your bathroom and is great for use in narrow applications. The polished finish will match in perfectly with your stainless tapware in the bathroom.

All the 12 volt single bar rails are provided with a transformer in the box. We also recommend the use of the mounting system for installing and using a timer to control the rails and save on running costs.

Technical Data

• Product Code: DSR4/DSR6/DSR8
• Output:
• DSR4 -- 14Watts
• DSR6 -- 18 Watts
• DSR8 -- 23 Watts

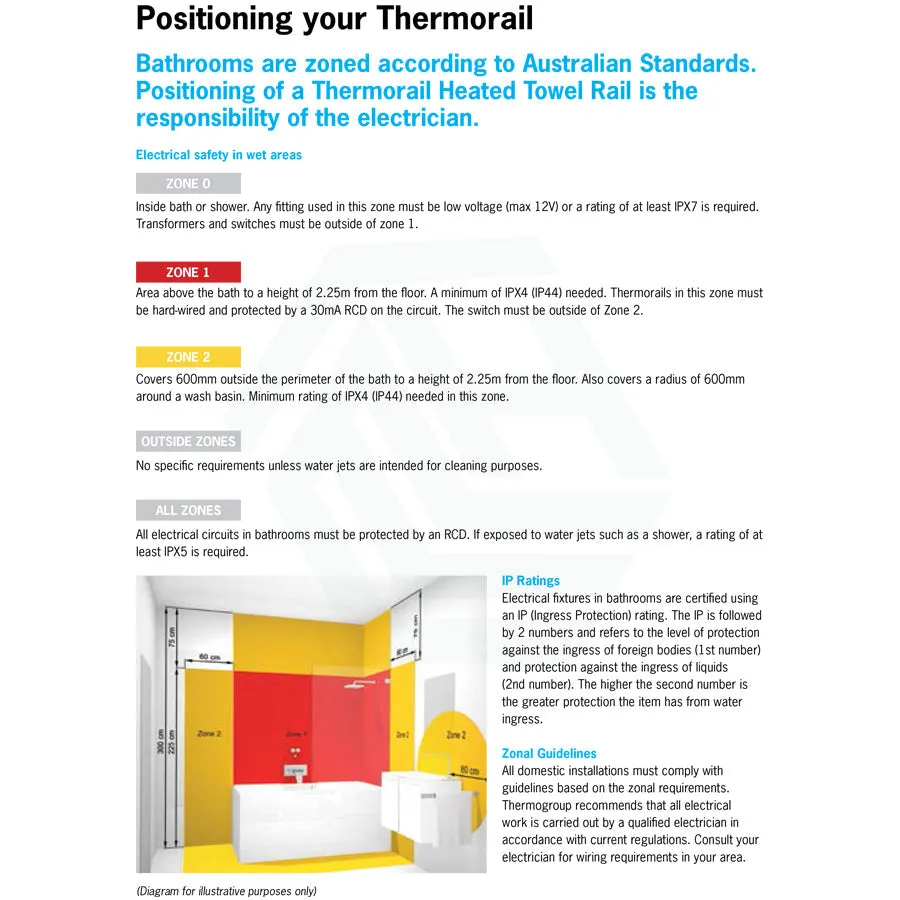

• IP Rating: IP45, Low voltage, safe for use in bathrooms
• Warranty: 10 Years Warranty
• Lead Length: 2m
• Voltage: 12Volt
• Wiring Type: Concealed (hardwired)
• Wiring Position: Right-hand side

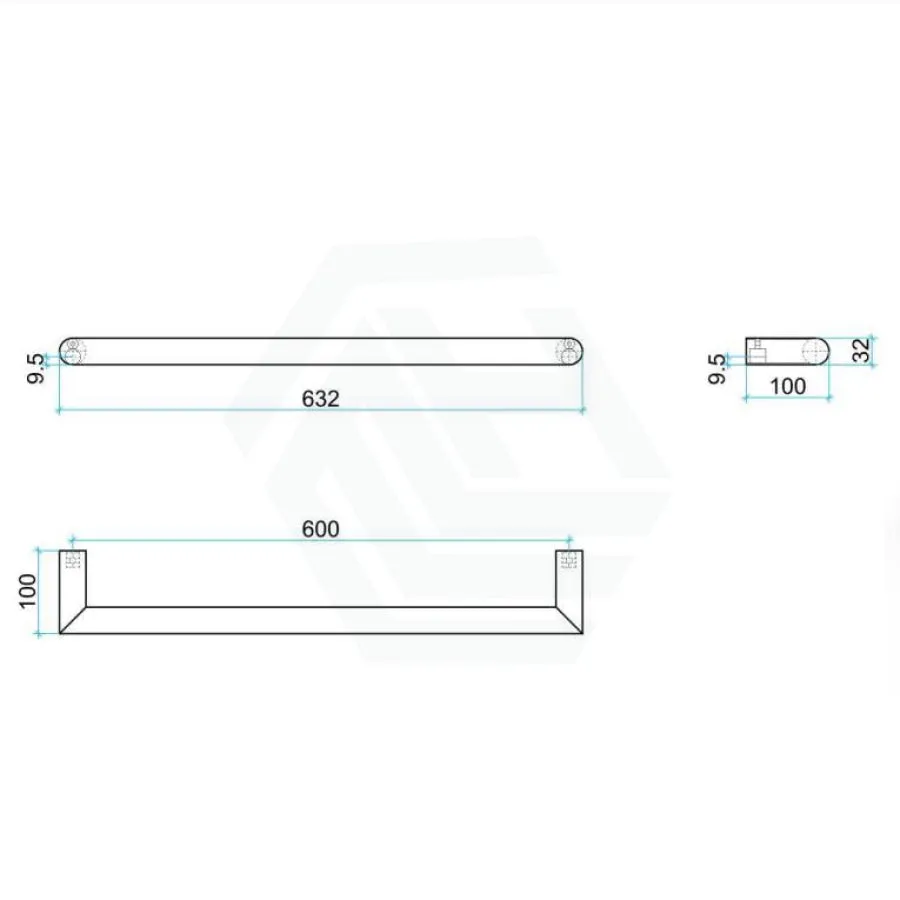

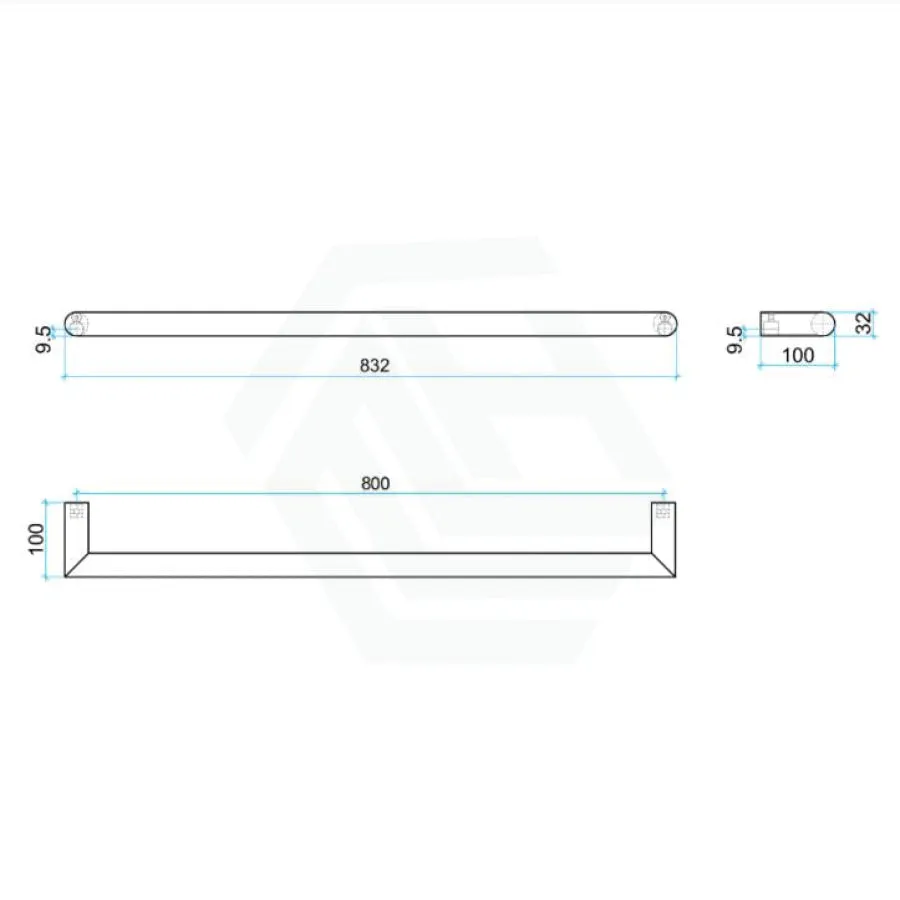

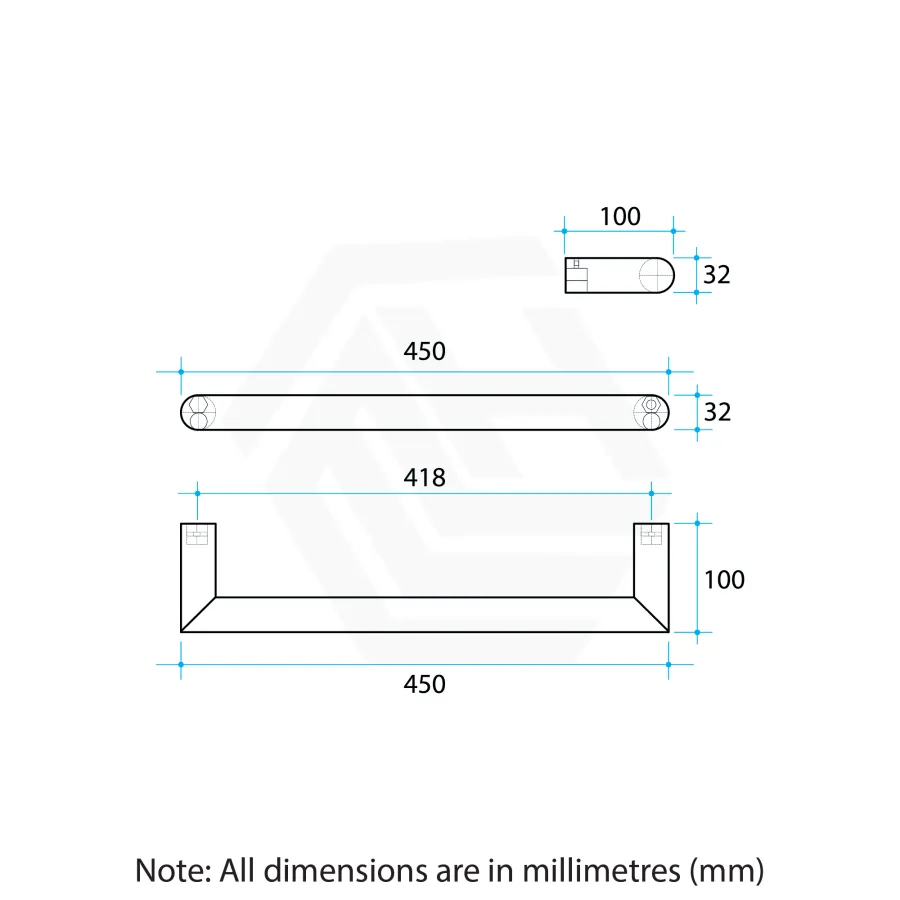

• Distance Between Mounting Points (Left to Right):
• DSR4 -- 450mm
• DSR6 -- 600mm
• DSR8 -- 800mm

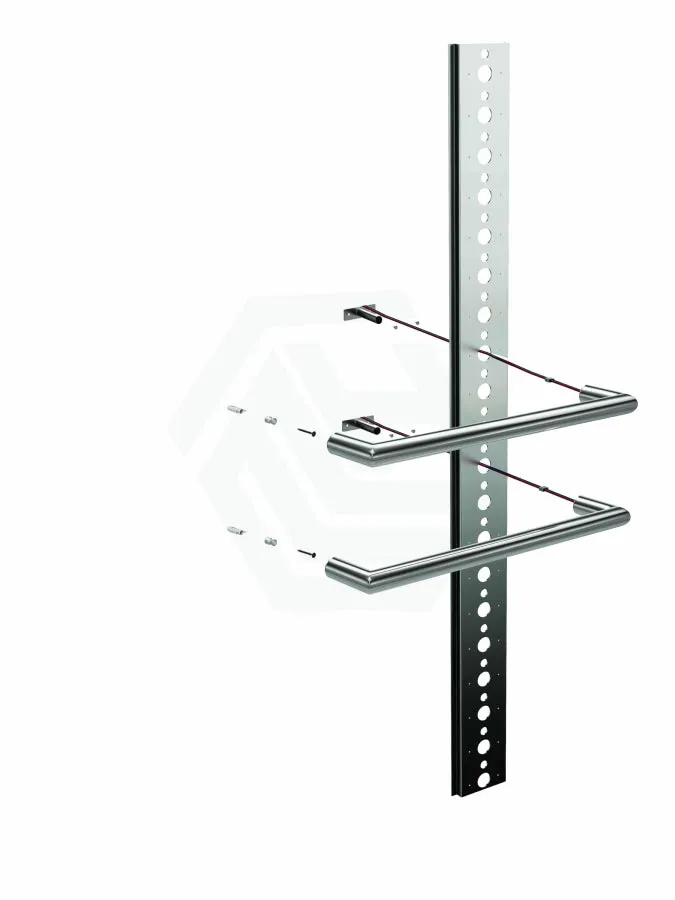

 Optional Mounting System (1000x110x10mm)

The Thermorail SRMS mounting system ensures an even spacing between the rail, provides a stronger fixing point for the rail and allows the wiring to be put in the correct position prior to the wall being sheeted. This will save valuable installation time on site and ensure an overall better installation. Whilst the mounting system is not mandatory for the install of single heated bathroom towel rails it is recommended especially if multiple rails are going to be installed to create a design statement in the bathroom.

*PLEASE NOTE: Specifications are for information purposes only. Whilst every effort has been made to ensure the product specifications are accurate, due to continuing product development and improvement the specifications are subject to change. Specifications can be used to rough in and fit timber supports in the wall however we recommend no holes are drilled without having the product on site or verifying the details with the manufacturer. Thermogroup cannot be held liable or responsible for errors due to updated specifications.
